MobileGL/tools/trace_replay/README.md

MobileGL trace replay

This directory builds a Linux command line replay runner for apitrace files. It is an integration testing infrastructure of MobileGL.

The bundled fixtures cover:

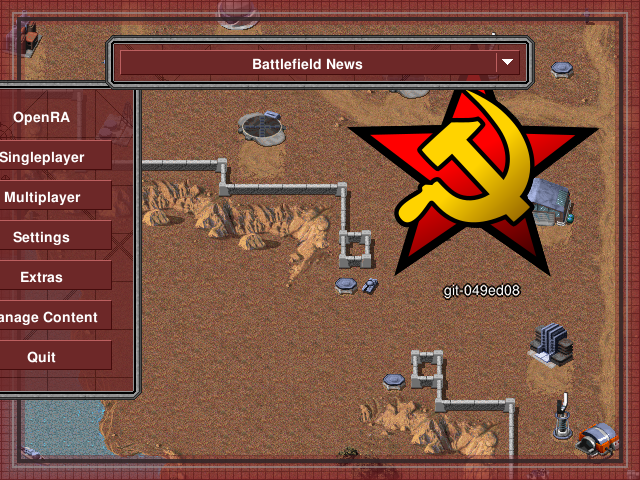

• OpenRA: sourced from GL4ES' apitrace corpus.

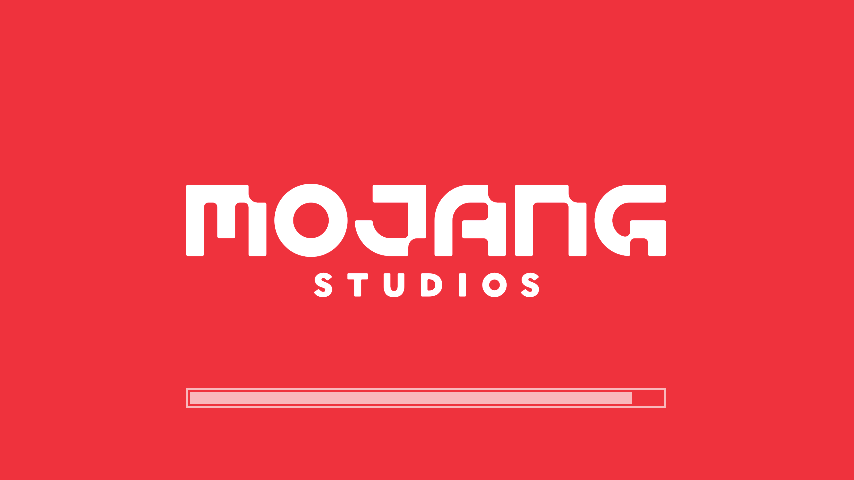

• minecraft-1.21.4-startup: captured from Minecraft 1.21.4's startup screen.

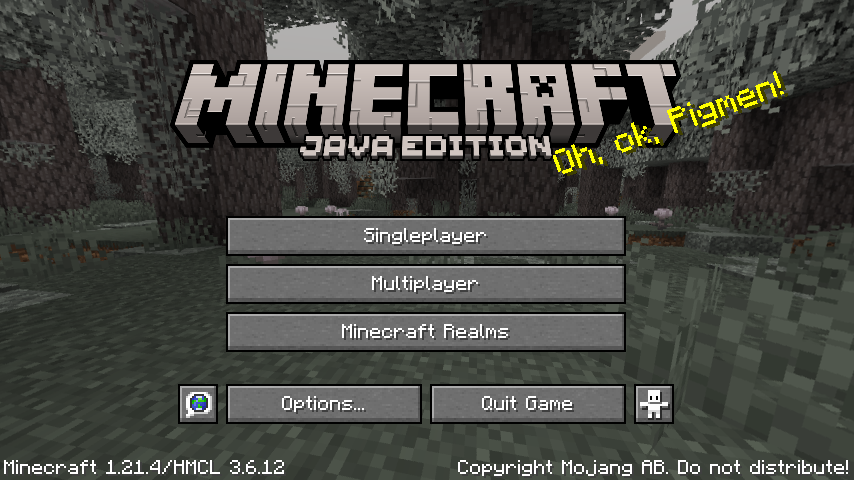

• minecraft-1.21.4-main-menu: captured from Minecraft 1.21.4's main menu.

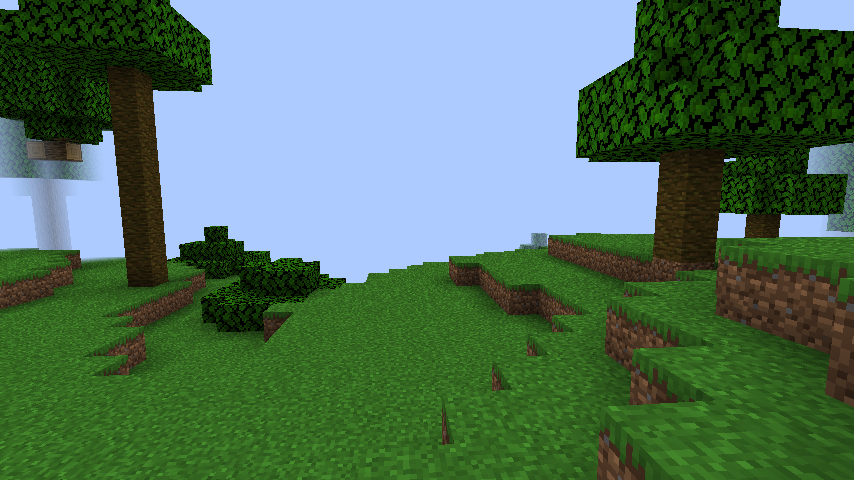

• minecraft-1.21.4-in-world: captured from Minecraft 1.21.4 after entering a singleplayer world.

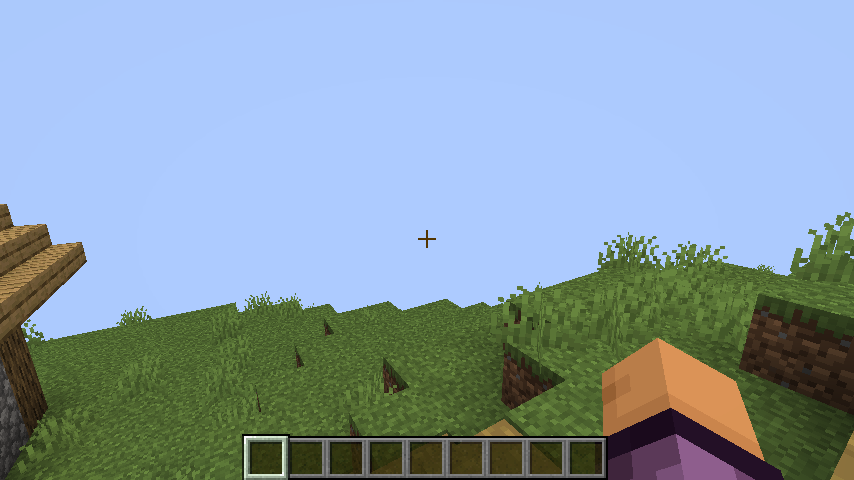

• minecraft-1.21.4-fabric-sodium-in-world: captured from Minecraft 1.21.4 Fabric with Sodium after entering a singleplayer world with Fancy graphics.

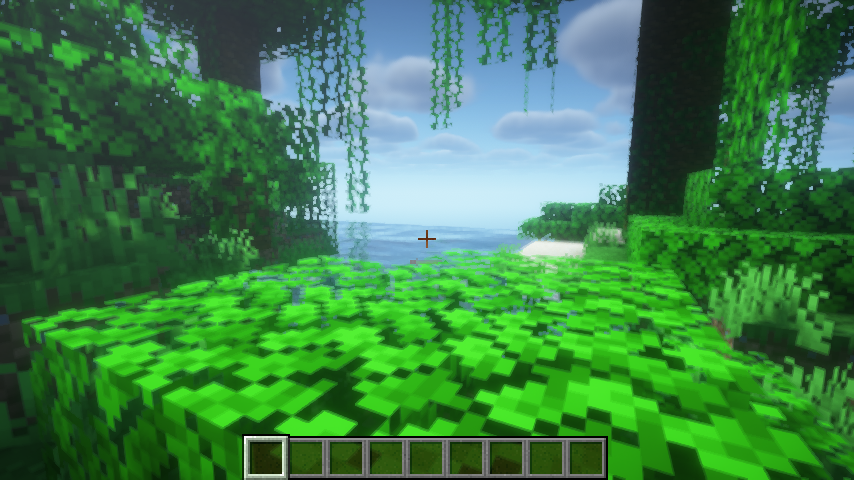

• minecraft-1.21.4-fabric-iris-bsl-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and BSL Shaders after entering a singleplayer world.

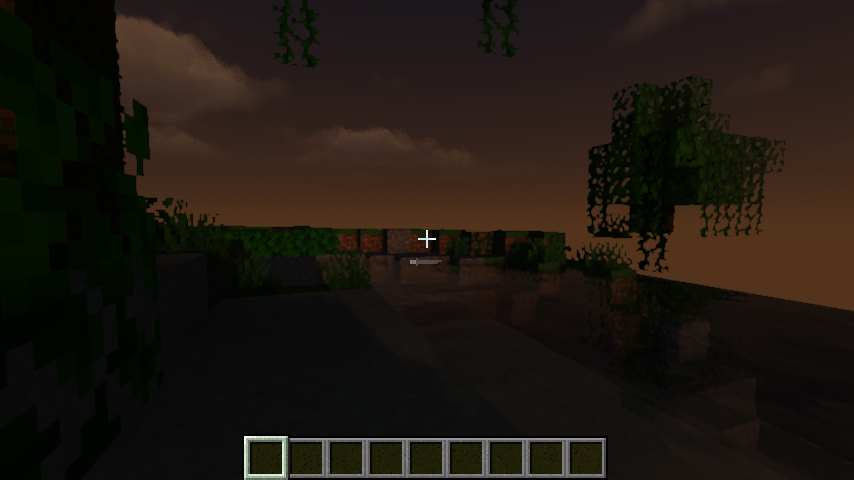

• minecraft-1.21.4-fabric-iris-makeup-ultrafast-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and MakeUP UltraFast after entering a singleplayer world.

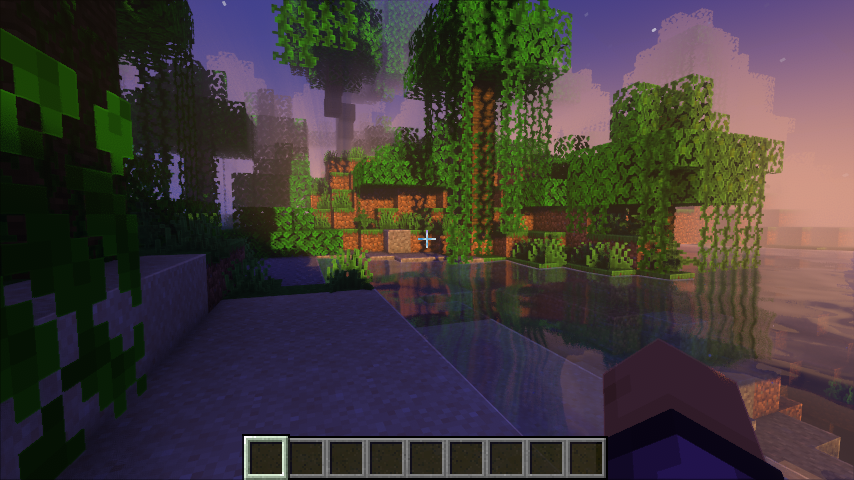

• minecraft-1.21.4-fabric-iris-super-duper-vanilla-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and Super Duper Vanilla after entering a singleplayer world.

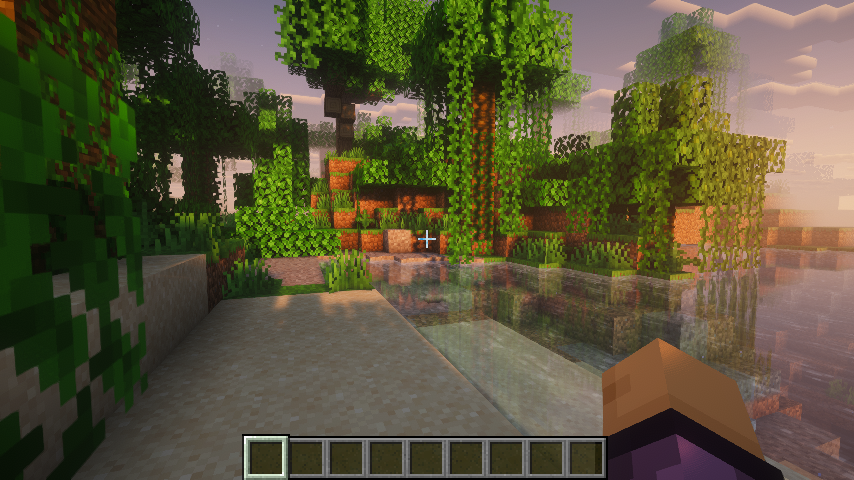

• minecraft-1.21.4-fabric-iris-complementary-reimagined-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and Complementary Reimagined after entering a singleplayer world.

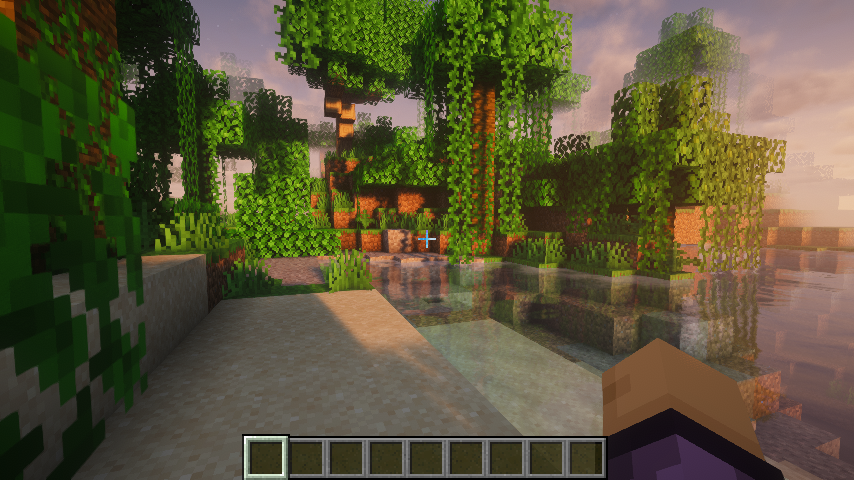

• minecraft-1.21.4-fabric-iris-complementary-unbound-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and Complementary Unbound after entering a singleplayer world.

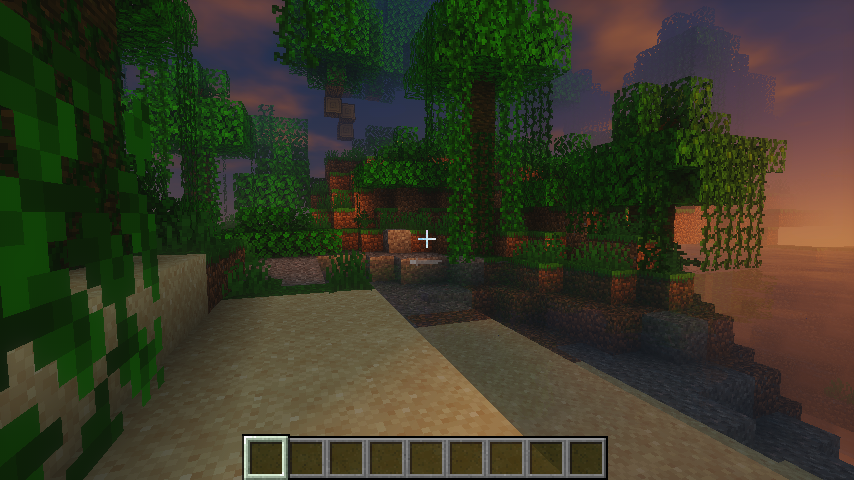

• minecraft-1.21.4-fabric-iris-mellow-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and Mellow after entering a singleplayer world.

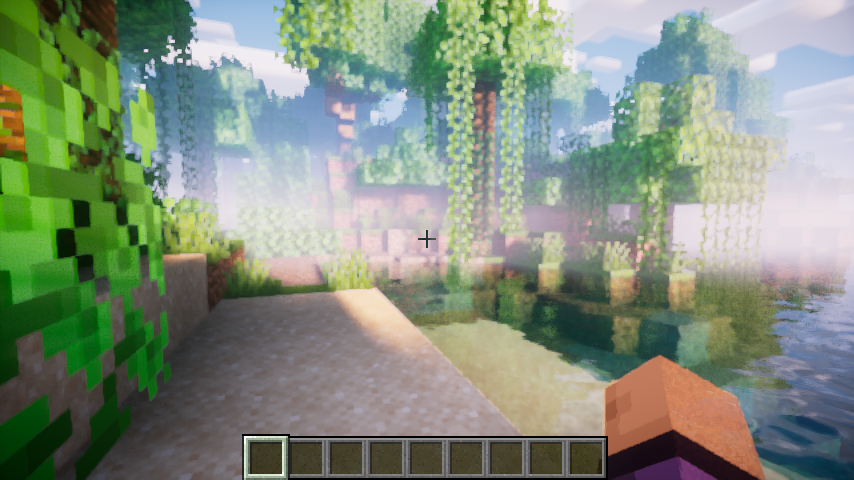

• minecraft-1.21.4-fabric-iris-nostalgia-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and Nostalgia after entering a singleplayer world.

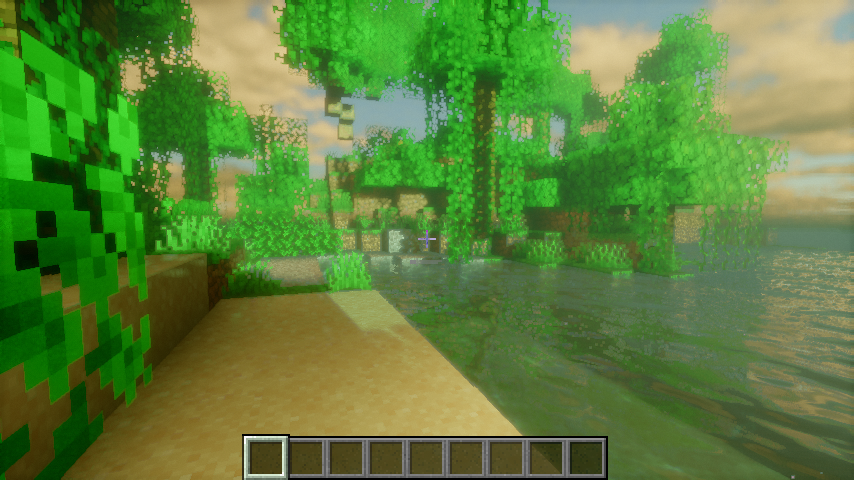

• minecraft-1.21.4-fabric-iris-bliss-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and Bliss after entering a singleplayer world.

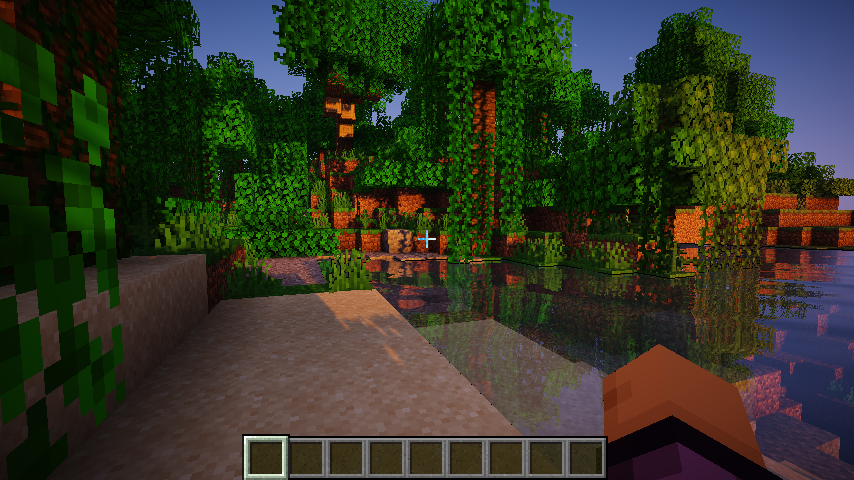

• minecraft-1.21.4-fabric-iris-chocapic-v6-lite-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and Chocapic V6 Lite after entering a singleplayer world.

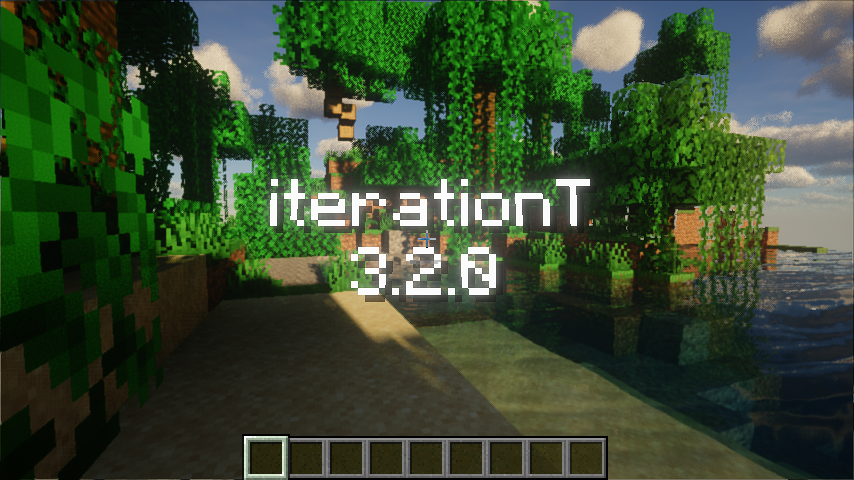

• minecraft-1.21.4-fabric-iris-iterationt-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and iterationT after entering a singleplayer world.

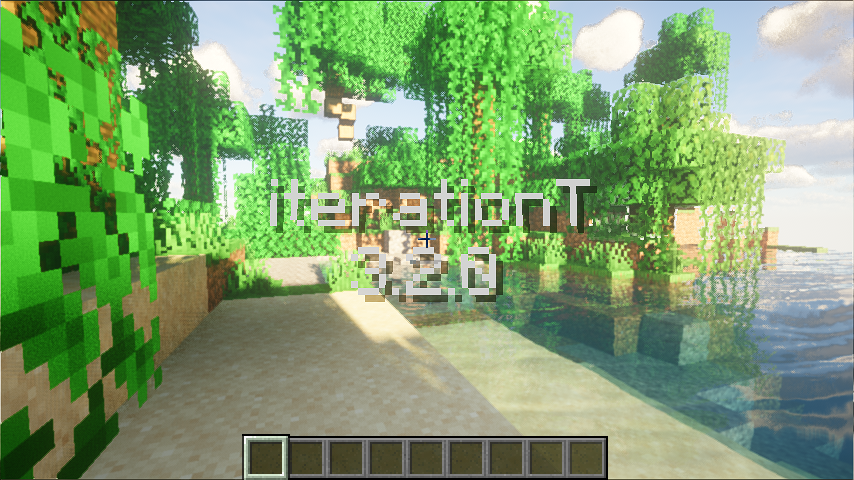

• minecraft-1.21.4-fabric-iris-iterationt-nodsa-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and iterationT after entering a singleplayer world, with Iris' DSA path disabled.

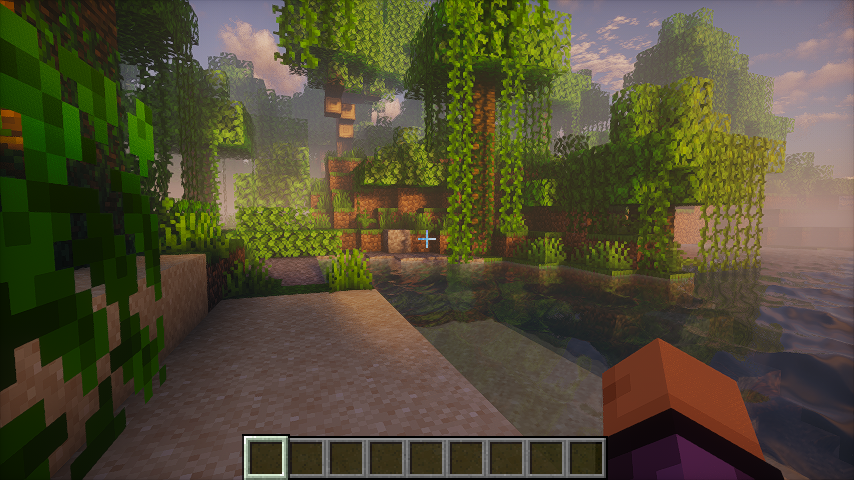

• minecraft-1.21.4-fabric-iris-photon-v1.1-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and Photon v1.1 after entering a singleplayer world.

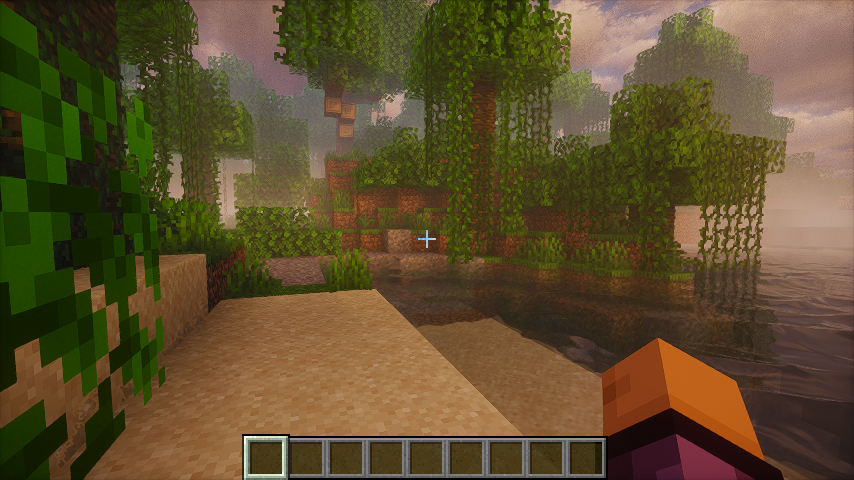

• minecraft-1.21.4-fabric-iris-photon-v1.3b-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and Photon v1.3b after entering a singleplayer world.

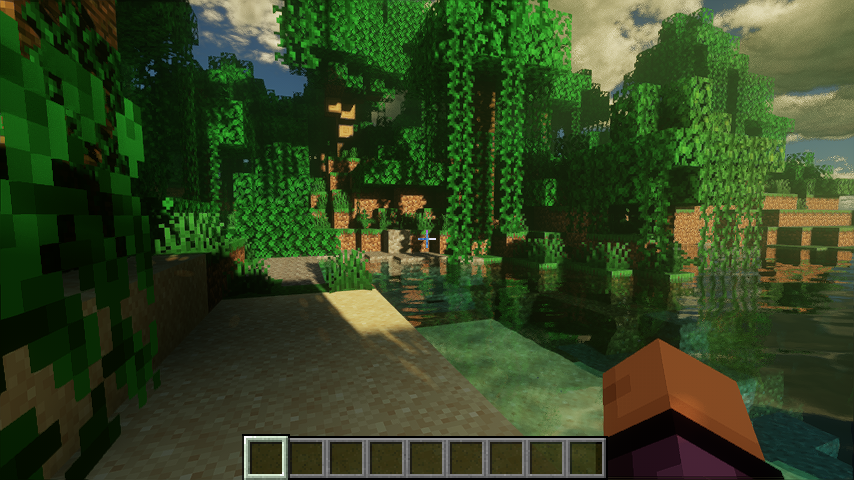

• minecraft-1.21.4-fabric-iris-derivative-main-d24.4.14-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and Derivative Main d24.4.14 after entering a singleplayer world.

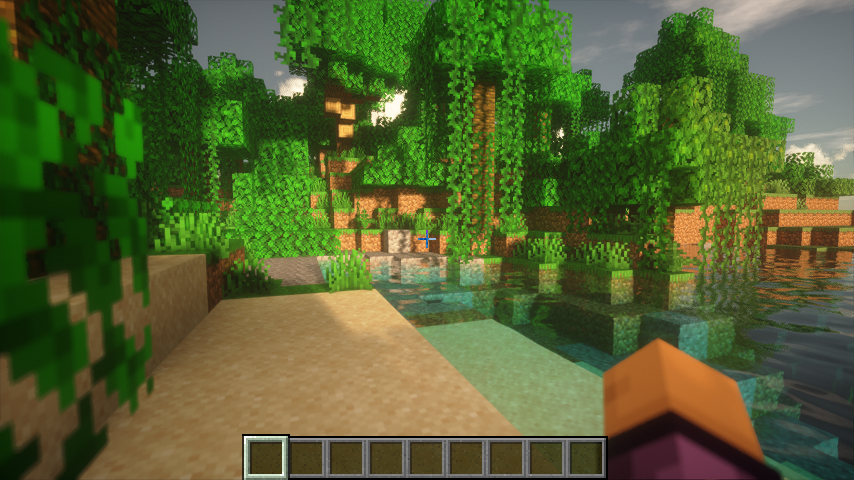

• minecraft-1.21.4-fabric-iris-sundial-lite-in-world: captured from Minecraft 1.21.4 Fabric with Sodium, Iris, and Sundial Lite after entering a singleplayer world.

Build from the MobileGL repository root:

cmake -S . -B build-test -G Ninja \
  -DMOBILEGL_BUILD_TEST=ON \
  -DMOBILEGL_BUILD_BENCHMARK=OFF \
  -DMOBILEGL_BUILD_TRACE_REPLAY=ON
cmake --build build-test

Run the fixture tests:

ctest --test-dir build-test -V -R 'MobileGLTraceReplay\.'

Run the CLI directly:

build-test/tools/trace_replay/mobilegl_trace_replay \
  --trace openra.trace \
  --golden openra.0000031249.png \
  --output out/openra \
  --backend DirectGLES \
  --mobilegl-library build-test/libMobileGL.so \
  --target-call 31249 \
  --width 640 \
  --height 480 \
  --crop-x 1 \
  --crop-y 1 \
  --crop-width 638 \
  --crop-height 478 \
  --ssim-threshold 0.99

Android device replay

Build and install a trace APK from the repository root:

gradle --no-daemon -p android-plugin :app:assembleEsprytTraceDebug
adb install -r android-plugin/app/build/outputs/apk/esprytTrace/debug/MobileGL-EsprytTrace-debug.apk

Prepare a fixture and copy it into the app-private directory:

mkdir -p /tmp/mobilegl-openra
tar -xzf tools/trace_replay/fixtures/openra.tgz -C /tmp/mobilegl-openra
adb push /tmp/mobilegl-openra/openra.trace /data/local/tmp/mobilegl-openra.trace
adb push tools/trace_replay/fixtures/openra.0000031249.png /data/local/tmp/mobilegl-openra.golden.png

PKG=top.mobilegl.plugin.espryt.trace
APP_DIR=/data/user/0/$PKG/files/trace-replay
adb shell run-as $PKG rm -rf files/trace-replay
adb shell run-as $PKG mkdir -p files/trace-replay/input files/trace-replay/output
adb shell run-as $PKG cp /data/local/tmp/mobilegl-openra.trace files/trace-replay/input/openra.trace
adb shell run-as $PKG cp /data/local/tmp/mobilegl-openra.golden.png files/trace-replay/input/openra.golden.png

Launch the standalone trace runner Activity:

adb shell am start -W -a top.mobilegl.plugin.TRACE_REPLAY \
  -n $PKG/top.mobilegl.plugin.trace.TraceReplayActivity \
  --es trace_path $APP_DIR/input/openra.trace \
  --es golden_path $APP_DIR/input/openra.golden.png \
  --es output_dir $APP_DIR/output \
  --es diff_path $APP_DIR/output/openra-diff.png \
  --es backend DirectGLES \
  --el target_call 31249 \
  --ei width 640 \
  --ei height 480 \
  --ei crop_x 1 \
  --ei crop_y 1 \
  --ei crop_width 638 \
  --ei crop_height 478 \
  --es ssim_threshold 0.99

Read back the result and images:

adb shell run-as $PKG cat files/trace-replay/output/result.json
adb exec-out run-as $PKG cat files/trace-replay/output/actual.png > openra-actual.png
adb exec-out run-as $PKG cat files/trace-replay/output/openra-diff.png > openra-diff.png

For the Vulkan backend, build and install :app:assembleMagmaTraceDebug, set PKG=top.mobilegl.plugin.magma.trace, and pass --es backend DirectVulkan. DirectGLES also renders to the Activity surface by default; pass --ez use_pbuffer true to use the offscreen pbuffer path.
